Asian-style Double-side Durable 3-shelf Grocery Shelf

FOB Reference Price:Get Latest Price
$75.00 - $95.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 50 >50
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Highbright
Model Number:
HBE-SR
Material:
Metallic
Feature:
Single-sided
Type:
Supermarket Rack
Style:
Heavy Duty
Capacity:
100kg-150kg
Layer:
4 Layers
Product Name:
retail store shelving
Color:
RAL
Surface treatment:
Powder Coated Finish
Size:
Customer Size
Function:
department store shelving
Usage:
commercial store shelving
MOQ:
1 Set
Certificate:
ISO9001/CE/SGS/BV
Packing:
Standard Carton
Name:
metal store shelving
Supply Ability
Supply Ability:
1000 Unit/Units per Week of retail store shelving
Packaging & Delivery
Packaging Details
Knocked down and all parts in carton package.
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 50 >50
Est. Time(days) 25 To be negotiated
Product Description

    Retail shelving bays offer a modular and flexible solution to displaying products.Sometimes the term "gondola shelving" is used as a generic term for any type of supermarket shelving but,normally it refers to double sided, shop shelving designed for use in the central aisles of the store.


    Gondola shelving is the most significant piece of shop equipment, not because most products are displayed on the gondola shelves, but because it is used to create the overall store layout by forming the shelving aisles. Shelving aisles should be positioned strategically to direct customer flow. Routing customer flow around the store is an essential method to ensure exposure to all the products on display.

Our Service

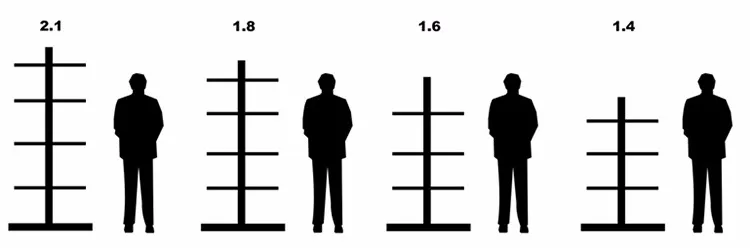

1. Which height of gondola should I choose?

1.4m – 1.6m height is commonly chosen for the following reasons:
These heights provide a more open feel to the store, enabling both the retailer and the customer to see over the top of the shelving. In smaller stores this low gondola shelving is much less overpowering than tall aisles of gondola. It also provides enhanced security throughout the store with potential shoplifters being more visible.

1.8m – 2.1m height gondolas tend to be more popular in larger shops, where it is more in proportion to the store size. A clear benefit is the increased amount of products that can be displayed.

2. How many sections i need?

Sections can be combined for any run length
Shelving run consists of a number of sections and 1 upright+2 base feet
Based on the concept of section and run, decide how many sections and the a row of run length you need

3. What depth of gondola shelves should I choose?

The choice of gondola shelf depth is sometimes dictated by the shop size, narrower gondolas may make it possible to increase the number of shelving aisles and therefore the range of products on display. If space is not an issue the shelf depth is normally chosen by the quantity of stock that is required to be on display. Deeper shelves can hold more stock, which will increase the cost of fully stocking the shelves, but decrease the likelihood of running out of stock on display and the frequency of shelf stacking. Smaller shelves will need regular restocking to prevent the shelving appearing empty which is not attractive to customers, but does decrease the amount of stock required.

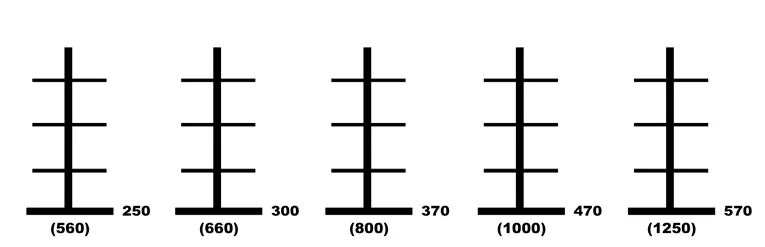

4.What is a gondola end bay?

Gondola end bays are sometimes called promo end bays because they are often used for promotions. End bays are normally located at the end of the gondola run to provide a neat end. End bays are normally the same height as the gondola and have plain back panels on the rear to give a neat appearance as the back of the unit is visible. These rear panels also prevent items from falling off the gondola shelves down into the end bay unit.
The end bays should be selected in the correct width to match the overall width of the gondola base.


Gondola base shelf depth                           End bay width
300mm                                                              665mm
370mm                                                              800mm
470mm                                                              1000mm
570mm                                                              1250mm


The end bays can be shelved in the same depths as the gondolas or, can have perforated pegboard or slatted back panels, should there be hanging items to be displayed.

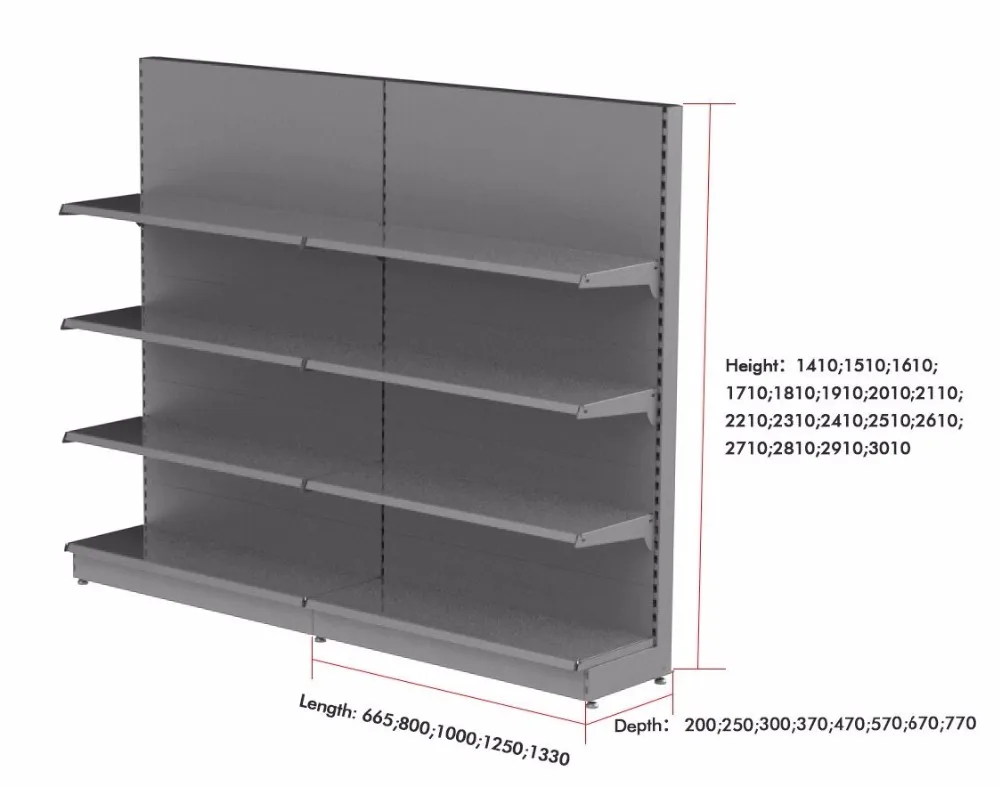

Specification
Shelving components
Size
Alternative options(mm)


Upright
Section size
30x30/ 30x60/ 30x80/ 30x110
Length
1410/1510/1610/1710/1810/1910/2010/2110/2210/ 2310/2410/2510/2610/2710/2810/2910/3010
Thickness
2.0/ 2.5
Base leg
Length
200/250/300/370/470/570/670/770
Height
60/110/160/260

Shelf
Width
665/800/1000/1250/1330
Depth
200/250/300/370/470/570/670/770
Thickness
0.7/0.8

Wire shelf
Width
665/1000/1250/1330
Depth
370/470/570
Dia
2.8

Preforated backpanel
Width
665/800/1000/1250/1330
Height
400/500
Thickness
1.0/1.2

Back panel
Width
665/800/1000/1250/1330
Height
100/200/300/400/500
Thickness
0.6/0.7

Bracket
Hook number
2/3/4
Length
200/250/300/ 370/470/570/670/770
Thickness
2.5/3
